Introduction

I try to build a lightweight multiplayer networking framework by using Photon PUN’s free tier.

The source code is available on GitHub.

Network Manager

Manage the connection to Photon server, room joining/leaving, and scene loading.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
public class NetworkManager : MonoBehaviourPunCallbacks
{
    private static NetworkManager _instance;
    private bool _isConnected = false;
    private bool _isRoomListUpdated = false;
    private List<RoomInfo> _roomList;

    private void Awake()
    {
        if (_instance && _instance != this)
        {
            Destroy(gameObject);
            return;
        }

        // Singleton pattern
        _instance = this;
        DontDestroyOnLoad(gameObject);

        // Connect to Photon server
        PhotonNetwork.AutomaticallySyncScene = true;
        PhotonNetwork.ConnectUsingSettings();
    }

    public override void OnConnectedToMaster()
    {
        Debug.Log("Connected to Master Server");
        PhotonNetwork.JoinLobby();
    }

    public override void OnJoinedLobby()
    {
        Debug.Log("Joined Lobby");
        _isConnected = true;
    }

    public override void OnJoinedRoom()
    {
        var room = PhotonNetwork.CurrentRoom;
        Debug.Log($"Joined Room: {room.Name}");
        Debug.Log($"Players: {room.PlayerCount}/{room.MaxPlayers}");
        Debug.Log($"IsOpen: {room.IsOpen}, IsVisible: {room.IsVisible}");

        SceneManager.sceneLoaded += OnRoomSceneLoaded;
        SceneManager.sceneLoaded += OnGameSceneLoaded;
        PhotonNetwork.LoadLevel("Room");
    }

    public override void OnLeftRoom()
    {
        Debug.Log("Left Room");

        if (PhotonNetwork.IsConnected)
            PhotonNetwork.Disconnect();
        PhotonNetwork.LoadLevel("Menu");
    }

    public override void OnRoomListUpdate(List<RoomInfo> roomList)
    {
        _roomList = roomList;
        _isRoomListUpdated = true;
    }

    private static void OnRoomSceneLoaded(Scene scene, LoadSceneMode mode)
    {
        if (scene.name == "Room")
        {
            PhotonNetwork.Instantiate("Player", Vector3.zero, Quaternion.identity);
            SceneManager.sceneLoaded -= OnRoomSceneLoaded;
        }
    }

    private static void OnGameSceneLoaded(Scene scene, LoadSceneMode mode)
    {
        if (scene.name == "Game")
        {
            PhotonNetwork.Instantiate("Player", Vector3.zero, Quaternion.identity);
            SceneManager.sceneLoaded -= OnGameSceneLoaded;
        }
    }
}

Lobby

Script will hide/show certain UI elements based on connection status.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class Lobby : MonoBehaviour
{
    public List<GameObject> waitingConnectedObjects;
    private bool _isConnected = false;

    private void Awake()
    {
        // Disable connected objects until connected to Photon server
        foreach (var obj in waitingConnectedObjects)
            obj.SetActive(false);
    }

    private void Update()
    {
        if (Input.GetKeyDown(KeyCode.Escape))
            SceneManager.LoadScene("Menu");

        // Enable connected objects
        if (!_isConnected && NetworkManager.Instance().IsConnected())
        {
            _isConnected = true;
            foreach (var obj in waitingConnectedObjects)
                obj.SetActive(true);
        }
    }
}

Host / Join Room

Host / Join room with options provided by Photon PUN.

  • Add password protection feature.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class HostRoom : MonoBehaviour
{
    public TMP_InputField roomNameInputField;
    public List<Toggle> maxPlayersToggles;
    public Toggle visibleToggle;

    public void OnHostButtonClicked()
    {
        if (string.IsNullOrEmpty(roomNameInputField.text))
            return;

        var maxPlayers = 0;
        foreach (var toggle in maxPlayersToggles)
        {
            if (toggle.isOn)
            {
                maxPlayers = int.Parse(toggle.name);
                break;
            }
        }

        var isVisible = visibleToggle.isOn;

        var roomOptions = new Photon.Realtime.RoomOptions
        {
            MaxPlayers = maxPlayers,
            IsVisible = isVisible,
            IsOpen = true
        };
        PhotonNetwork.CreateRoom(roomNameInputField.text, roomOptions);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
public class JoinRoom : MonoBehaviour
{
    public GameObject roomEntryPrefab;
    public Transform roomListContent;
    public TMP_InputField roomNameInputField;
    private readonly Dictionary<string, GameObject> _roomEntries = new();

    private void Update()
    {
        if (Input.GetKeyDown(KeyCode.Escape))
            PhotonNetwork.LoadLevel("Lobby");

        if (!NetworkManager.Instance().IsRoomListUpdated() && _roomEntries.Count > 0)
            return;

        // Delete old entries
        foreach (var entry in _roomEntries.Values)
            Destroy(entry);
        _roomEntries.Clear();

        foreach (var roomInfo in NetworkManager.Instance().RoomList())
        {
            if (roomInfo.RemovedFromList)
                continue;

            // Only show open rooms with available slots
            if (!roomInfo.IsOpen || roomInfo.PlayerCount >= roomInfo.MaxPlayers)
                continue;

            var entryObj = Instantiate(roomEntryPrefab, roomListContent);
            _roomEntries[roomInfo.Name] = entryObj;

            // Set room info text
            var text = entryObj.GetComponentInChildren<TMP_Text>();
            text.text = $"Room: {roomInfo.Name}   " +
                        $"Players: {roomInfo.PlayerCount}/{roomInfo.MaxPlayers}";

            // Set button click listener
            var button = entryObj.GetComponent<Button>();
            var capturedName = roomInfo.Name;
            button.onClick.AddListener(() => { roomNameInputField.text = capturedName; });
        }
    }

    public void OnJoinButtonClicked()
    {
        if (string.IsNullOrEmpty(roomNameInputField.text))
            return;

        PhotonNetwork.JoinRoom(roomNameInputField.text);
    }
}

Room

Players are waiting in the room until all are ready.

  • Players can wait in different rooms(like matchmaking) before starting the game.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
public class Room : MonoBehaviourPunCallbacks
{
    public Button readyButton;
    private bool _isReady = false;
    private const string PlayerReadyKey = "Ready";

    private void Awake()
    {
        UpdateReadyButtonText();
        readyButton.onClick.AddListener(OnReadyButtonClicked);
    }

    private void Update()
    {
        if (Input.GetKeyDown(KeyCode.Escape))
            PhotonNetwork.LeaveRoom();
    }

    private void OnReadyButtonClicked()
    {
        _isReady = !_isReady;
        UpdateReadyButtonText();

        var props = new Hashtable
        {
            { PlayerReadyKey, _isReady }
        };
        PhotonNetwork.LocalPlayer.SetCustomProperties(props);
    }

    private void UpdateReadyButtonText()
    {
        readyButton.GetComponentInChildren<TMP_Text>().text =
            _isReady ? "Unready" : "Ready";
    }

    public override void OnPlayerPropertiesUpdate(Photon.Realtime.Player player, Hashtable changedProps)
    {
        if (!changedProps.ContainsKey(PlayerReadyKey))
            return;

        if (PhotonNetwork.IsMasterClient)
            TryStartGame();
    }

    private static void TryStartGame()
    {
        // check if all players are ready
        var readyPlayers = 0;
        foreach (var player in PhotonNetwork.PlayerList)
        {
            if (!player.CustomProperties.TryGetValue(PlayerReadyKey, out var readyObj))
                return;
            if (!(bool)readyObj)
                return;

            readyPlayers++;
        }

        if (readyPlayers == PhotonNetwork.CurrentRoom.MaxPlayers)
            PhotonNetwork.LoadLevel("Game");
    }
}

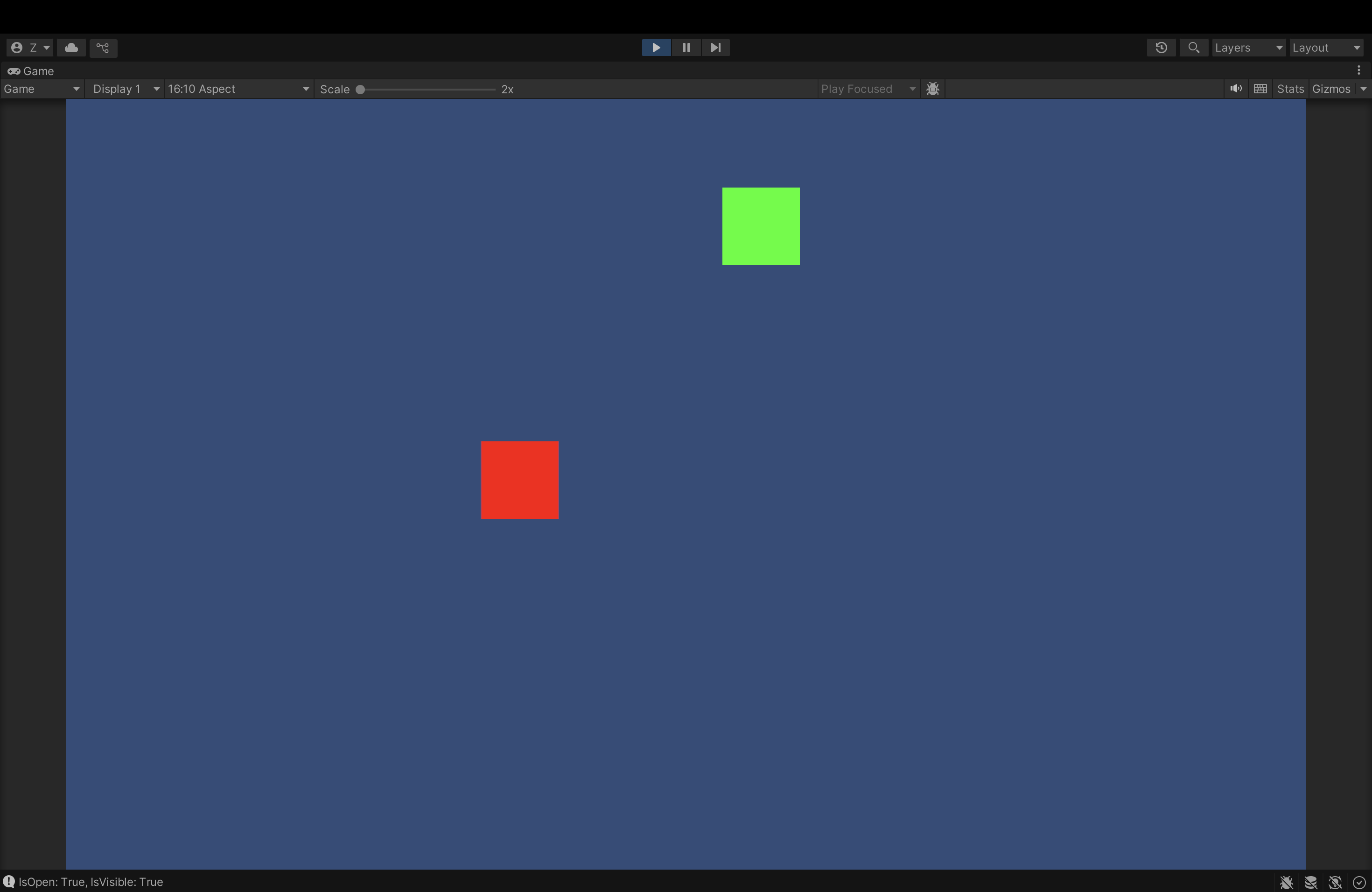

Game

Players will keep some status from the room, e.g., appearance(color).

Use Photon custom properties to sync player appearance.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
public class Appearance : MonoBehaviourPunCallbacks
{
    private SpriteRenderer _spriteRenderer;
    private const string PlayerColorKey = "Color";

    private void Awake()
    {
        _spriteRenderer = GetComponent<SpriteRenderer>();
        if (photonView.Owner.CustomProperties.TryGetValue(PlayerColorKey, out var colorObj))
        {
            // Retrieve and apply the color from custom properties
            var rgb = (float[])colorObj;
            _spriteRenderer.color = new Color(rgb[0], rgb[1], rgb[2]);
        }
        else
        {
            // Default color if none is set
            _spriteRenderer.color = Color.white;
        }
    }

    private void Update()
    {
        if (!photonView.IsMine)
            return;

        if (SceneManager.GetActiveScene().name == "Game") return;
        if (Input.GetKeyDown(KeyCode.Alpha1)) SetColor(Color.red);
        else if (Input.GetKeyDown(KeyCode.Alpha2)) SetColor(Color.green);
        else if (Input.GetKeyDown(KeyCode.Alpha3)) SetColor(Color.blue);
        else if (Input.GetKeyDown(KeyCode.Alpha4)) SetColor(Color.yellow);
    }

    private void SetColor(Color color)
    {
        _spriteRenderer.color = color;
        var rgb = new[] { color.r, color.g, color.b };
        var props = new Hashtable
        {
            { PlayerColorKey, rgb }
        };
        PhotonNetwork.LocalPlayer.SetCustomProperties(props);
    }

    public override void OnPlayerPropertiesUpdate(Photon.Realtime.Player targetPlayer, Hashtable changedProps)
    {
        if (changedProps.ContainsKey(PlayerColorKey))
        {
            if (photonView.Owner.Equals(targetPlayer))
            {
                var rgb = (float[])changedProps[PlayerColorKey];
                _spriteRenderer.color = new Color(rgb[0], rgb[1], rgb[2]);
            }
        }
    }
}

Menu

Destroy the NetworkManager instance when returning to the menu scene to avoid some bugs.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public class Menu : MonoBehaviour
{
    private void Awake()
    {
        if (NetworkManager.Instance())
            Destroy(NetworkManager.Instance().gameObject);
    }

    private void Update()
    {
        if (Input.GetKeyDown(KeyCode.Escape))
            Application.Quit();
    }

    public void OnOnlineButtonClicked()
    {
        SceneManager.LoadScene("Lobby");
    }
}
