Particle Life Simulation

Introduction

A large-scale Particle Life simulation built with Unity DOTS (ECS + Jobs + Burst), focusing on emergent behavior through simple force rules. Thousands to particles interact in real time, forming complex, self-organizing patterns.

The source code is available on GitHub.

Init System

Require the global config components and initialize the random number generator.

public struct ParticleCreateRequestComponent : IComponentData
{
    public int Count;
    public float2 MinPosition;
    public float2 MaxPosition;
}

public struct AttractionMatrixBlob
{
    public BlobArray<float> Matrix;
}
public struct ColorConfigComponent : IComponentData
{
    public int ColorCount;
    public BlobAssetReference<AttractionMatrixBlob> AttractionMatrix;
}

protected override void OnCreate()
{
    var seed = (uint)UnityEngine.Random.Range(1, 100000);
    Debug.Log("Random seed: " + seed);
    _rand = new Unity.Mathematics.Random(seed);

    RequireForUpdate<ParticleCreateRequestComponent>();
    RequireForUpdate<ColorConfigComponent>();
}

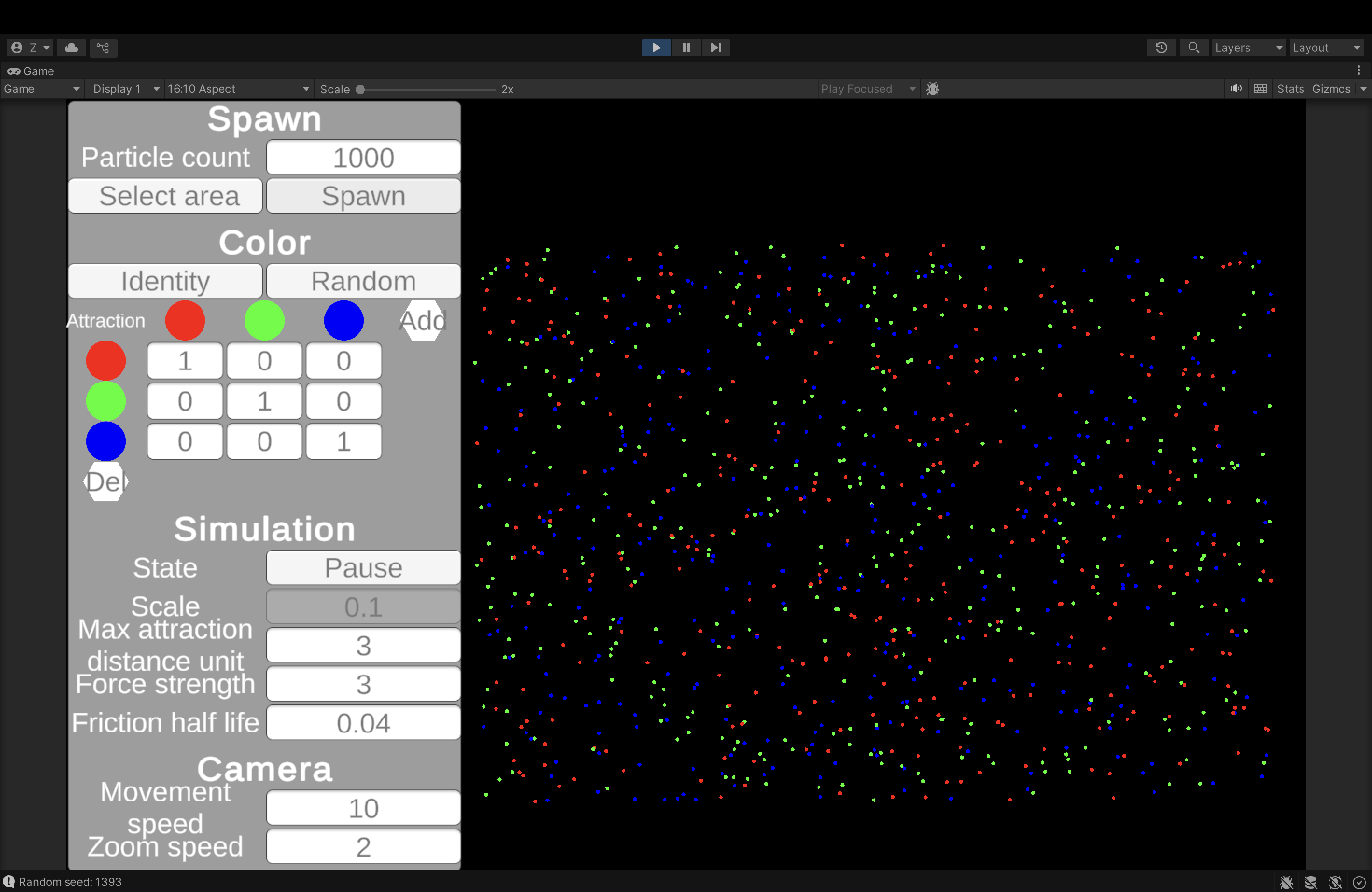

Spawn particles based on the create request, storing their color index, position, and velocity.

protected override void OnUpdate()
{
    var query = World.EntityManager.CreateEntityQuery(typeof(ParticleCreateRequestComponent));
    if (query.CalculateEntityCount() == 0)
        return;

    var requestEntity = query.GetSingletonEntity();
    var request = SystemAPI.GetComponent<ParticleCreateRequestComponent>(requestEntity);

    var entityManager = World.DefaultGameObjectInjectionWorld.EntityManager;
    var archetype = entityManager.CreateArchetype(typeof(Particle), typeof(LocalToWorld));

    var colorCount = SystemAPI.GetSingleton<ColorConfigComponent>().ColorCount;
    for (var i = 0; i < request.Count; i++)
    {
        var e = entityManager.CreateEntity(archetype);

        var pos = _rand.NextFloat2(request.MinPosition, request.MaxPosition);
        entityManager.SetComponentData(e,
            new Particle { ColorIndex = _rand.NextInt(0, colorCount), Position = pos, Velocity = float2.zero });
        entityManager.SetComponentData(e, new LocalToWorld { Value = float4x4.Translate(new float3(pos, 0)) });
    }

    entityManager.DestroyEntity(requestEntity);
}

public struct Particle : IComponentData
{
    public int ColorIndex;
    public float2 Position;
    public float2 Velocity;
}

Movement System

Read the global config component to update particle positions based on their velocities.

Handle boundary conditions if enabled.

[UpdateInGroup(typeof(SimulationSystemGroup))]
public partial struct ParticleMovementSystem : ISystem
{
    [BurstCompile]
    public void OnCreate(ref SystemState state)
    {
        state.RequireForUpdate<ParticleSimulationConfigComponent>();
        state.RequireForUpdate<BoundaryConfigComponent>();
    }

    [BurstCompile]
    public void OnUpdate(ref SystemState state)
    {
        var simulationComponent = SystemAPI.GetSingleton<ParticleSimulationConfigComponent>();
        if (!simulationComponent.SimulationEnabled) return;

        var boundaryComponent = SystemAPI.GetSingleton<BoundaryConfigComponent>();
        var job = new MovementJob { DeltaTime = SystemAPI.Time.DeltaTime, BoundaryComponent = boundaryComponent };
        job.ScheduleParallel();
    }

    [BurstCompile]
    private partial struct MovementJob : IJobEntity
    {
        public float DeltaTime;
        public BoundaryConfigComponent BoundaryComponent;

        private void Execute(ref Particle particle, ref LocalToWorld localToWorld)
        {
            var pos = particle.Position;
            pos += particle.Velocity * DeltaTime;

            if (BoundaryComponent.BoundaryEnabled)
            {
                var min = BoundaryComponent.MinPosition;
                var max = BoundaryComponent.MaxPosition;

                var width = max.x - min.x;
                var height = max.y - min.y;

                pos.x = min.x + math.fmod((pos.x - min.x + width), width);
                pos.y = min.y + math.fmod((pos.y - min.y + height), height);
            }

            particle.Position = pos;
            localToWorld.Value = float4x4.Translate(new float3(pos, 0));
        }
    }
}

Force System

Create force jobs to calculate inter-particle forces based on their color indices and positions.

[UpdateInGroup(typeof(SimulationSystemGroup))]
public partial struct ForceSystem : ISystem
{
    private EntityQuery _particleQuery;

    [BurstCompile]
    public void OnCreate(ref SystemState state)
    {
        state.RequireForUpdate<ColorConfigComponent>();
        state.RequireForUpdate<ParticleSimulationConfigComponent>();
        state.RequireForUpdate<BoundaryConfigComponent>();

        _particleQuery = SystemAPI.QueryBuilder().WithAll<Particle>().Build();
    }

    [BurstCompile]
    public void OnUpdate(ref SystemState state)
    {
        var simulationComponent = SystemAPI.GetSingleton<ParticleSimulationConfigComponent>();
        if (!simulationComponent.SimulationEnabled) return;

        var colorComponent = SystemAPI.GetSingleton<ColorConfigComponent>();
        var boundaryComponent = SystemAPI.GetSingleton<BoundaryConfigComponent>();

        var particles = _particleQuery.ToComponentDataArray<Particle>(Allocator.TempJob);
        var colorIndices = new NativeArray<int>(particles.Length, Allocator.TempJob);
        var positions = new NativeArray<float2>(particles.Length, Allocator.TempJob);
        var velocities = new NativeArray<float2>(particles.Length, Allocator.TempJob);
        for (var i = 0; i < particles.Length; i++)
        {
            colorIndices[i] = particles[i].ColorIndex;
            positions[i] = particles[i].Position;
            velocities[i] = particles[i].Velocity;
        }

        var deltaTime = SystemAPI.Time.DeltaTime;
        var frictionFactor = CalFrictionFactor(deltaTime, simulationComponent.FrictionHalfLife,
            simulationComponent.FrictionFactor);
        var job = new ForceJob
        {
            // Single
            ColorIndices = colorIndices,
            Positions = positions,
            Velocities = velocities,

            // Global
            ColorComponent = colorComponent,
            DeltaTime = deltaTime,
            FrictionFactor = frictionFactor,
            SimulationComponent = simulationComponent,
            BoundaryComponent = boundaryComponent
        };
        job.ScheduleParallel(particles.Length, 64, state.Dependency).Complete();

        var index = 0;
        foreach (var particle in SystemAPI.Query<RefRW<Particle>>())
        {
            var p = particle.ValueRO;
            p.Velocity = velocities[index];
            particle.ValueRW = p;
            index++;
        }

        particles.Dispose();
        colorIndices.Dispose();
        positions.Dispose();
        velocities.Dispose();
    }

    [BurstCompile]
    private struct ForceJob : IJobFor
    {
        // Single
        [ReadOnly] public NativeArray<int> ColorIndices;
        [ReadOnly] public NativeArray<float2> Positions;
        public NativeArray<float2> Velocities;

        // Global
        [ReadOnly] public ColorConfigComponent ColorComponent;
        [ReadOnly] public float DeltaTime;
        [ReadOnly] public float FrictionFactor;
        [ReadOnly] public ParticleSimulationConfigComponent SimulationComponent;
        [ReadOnly] public BoundaryConfigComponent BoundaryComponent;

        public void Execute(int i)
        {
            var colorIndexA = ColorIndices[i];
            var posA = Positions[i];

            var totalForceDir = float2.zero;
            for (var j = 0; j < Positions.Length; j++)
            {
                if (i == j) continue;

                float2 dir;
                if (BoundaryComponent.BoundaryEnabled)
                {
                    GetWrappedDelta(posA, Positions[j], BoundaryComponent.MinPosition,
                        BoundaryComponent.MaxPosition, out dir);
                }
                else
                {
                    dir = Positions[j] - posA;
                }

                var dist = math.length(dir);
                if (!(dist < SimulationComponent.MaxAttractionDistance)) continue;

                var f = CalForce(dist / SimulationComponent.MaxAttractionDistance,
                    ColorComponent.AttractionMatrix.Value.Matrix[
                        colorIndexA * ColorComponent.ColorCount + ColorIndices[j]], 0.3f);
                totalForceDir += math.normalizesafe(dir) * f;

                // {
                //     var attrFactor = attraction * math.pow(1 - dist / maxDist, 1);
                //     var repulsionFactor = -math.pow((maxDist - dist) / (maxDist - radius), 1.0f); // 0.9 and 1.0
                //
                //     totalForceDir += math.normalizesafe(dir) * (attrFactor + repulsionFactor);
                // }

                // {
                //     var beta = ConfigComponent.Scale * ConfigComponent.AttractionMiddleUnit;
                //
                //     float factor;
                //     if (dist <= radius)
                //     {
                //         factor = dist / radius - 1;
                //     }
                //     else if(dist <= beta)
                //     {
                //         factor = attraction * (dist - radius) / (beta - radius);
                //     }
                //     else
                //     {
                //         factor = attraction * (maxDist - dist) / (maxDist - beta);
                //     }
                //     totalForceDir += math.normalizesafe(dir) * factor;
                // }
            }

            Velocities[i] *= FrictionFactor;
            Velocities[i] += totalForceDir * (SimulationComponent.ForceStrength * DeltaTime);
        }
    }

    [BurstCompile]
    private static float CalFrictionFactor(float deltaTime, float frictionHalfLife, float taylor1)
    {
        // var frictionFactor = math.pow(0.5f, deltaTime / configComponent.FrictionHalfLife);
        var taylor2 = -math.LN2 / frictionHalfLife * taylor1 * (deltaTime - 0.3333333f);
        var taylor3 = -math.LN2 / frictionHalfLife * taylor2 * (deltaTime - 0.3333333f) / 2;
        return taylor1 + taylor2 + taylor3;
    }

    [BurstCompile]
    private static float CalForce(float r, float a, float beta)
    {
        if (r < beta)
        {
            return r / beta - 1;
        }

        if (r > beta && r < 1)
        {
            return a * (1 - math.abs(2 * r - 1 - beta) / (1 - beta));
        }

        return 0.0f;
    }

    [BurstCompile]
    private static void GetWrappedDelta(in float2 a, in float2 b, in float2 min, in float2 max, out float2 result)
    {
        var size = max - min;
        var delta = b - a;

        if (delta.x > size.x / 2f) delta.x -= size.x;
        else if (delta.x < -size.x / 2f) delta.x += size.x;

        if (delta.y > size.y / 2f) delta.y -= size.y;
        else if (delta.y < -size.y / 2f) delta.y += size.y;

        result = delta;
    }
}
